DC Audio 7.5K 7500 Watt Class D Car Amplifier Online Sale

Original price was: $2,089.99.Current price is: $299.99.

SKU: US-2232315969639 Categories: , Tags: , , , , , ,

Description

DC Audio 7.5K 7500 Watt Class D Car Amplifier

The 7.5kw competition series amplifier is a 7,500 watt mono block. It is capable of running up to 18 volts for up to 9,200 watts. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped.

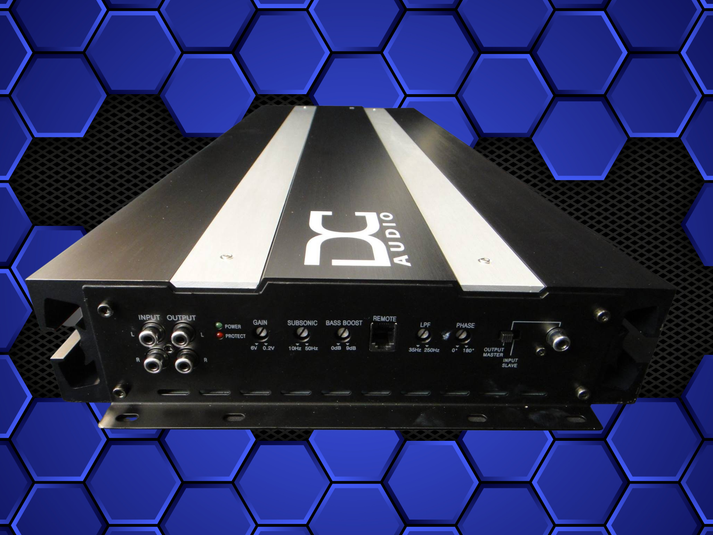

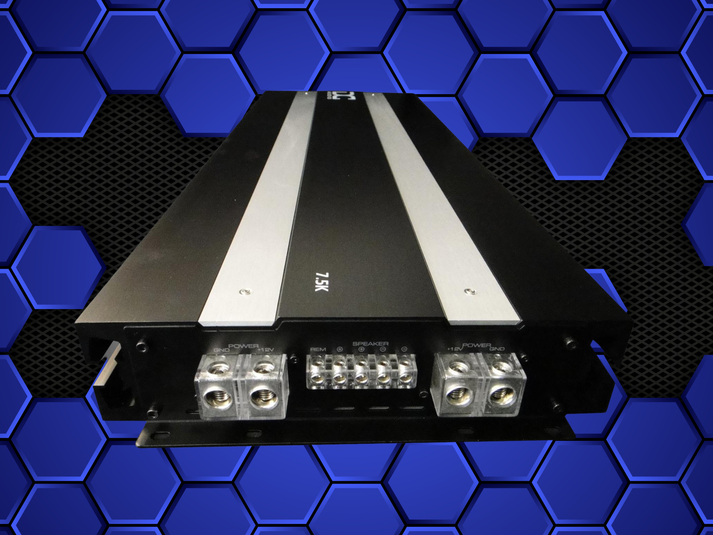

It comes with a bass knob and a clipping indicator. For power inputs it will accept dual 0 awg for power and dual 0 awg for ground.

Features Voltage 7.5kw
Output Power (RMS) 4 ohm 14.4V 2,000Wx1
2 ohm 14.4V 4,400×1
1 ohm 14.4V 7,500Wx1
1 ohm 16V 8,600Wx1
1 ohm 18V 9,200Wx1
Input Sensitivity 6V~0.2V
Low Pass Filter Switchable
( @ 24 dB Slope) Variable Hz 35~250
Subsonic Filter Switchable
( @ 24 dB Slope) Variable Hz 10~50
Bass Boost Variable dB 0-9dB
Frequency Response Hz 15-270
Signal to Noise Ratio dB 100
Damping factor 150<
Efficiency @ 4ohm % Over 90%
THD @ 4ohms Less than 0.1%
Fuse Rating 750 Amps
Linked Fuse Rating 1,500 Amps
Indicator Power Yes
Protection Yes
Clip No
Speaker & Power terminal Mold Type Yes
Power Gauge 0Ga x 2
Heatsink Length 32.28″ (650mm)
