Sale!

DC Audio M4 Level 1 12 Inch Subwoofer Dual 4 ohm Online

Original price was: $149.99.Current price is: $37.50.

SKU: US-14627715350894 Categories: , Tags: , , , ,

Description

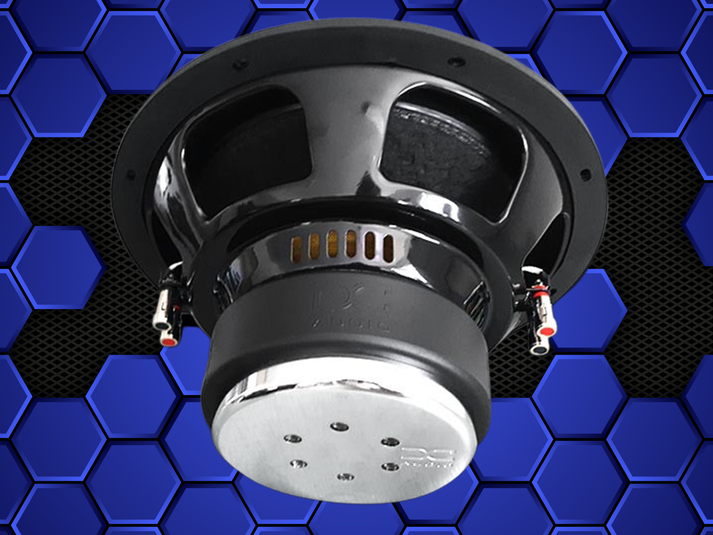

DC Audio M4 Level 1 12 Inch Subwoofer Dual 4 ohm

The Long-awaited DC Audio M4 Level 1 10 Inch Subwoofer is finally here!

It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke. 2.0″ voice coil, Glossy Black stamped Steel Frame, push terminals and a rating suggestion of 300w RMS/600w peak power handling.

This sub works great in sealed or ported enclosures.

DC Audio M4 Level 1 10 Inch Subwoofer Specs

Sub Size 10″ 12″
Mounting Depth 6″ 6.5″
Mounting Hole Diameter 9.3″ 11.2″
Outside Driver Diameter 11.0″ 12.5″
Weight 18lbs 18.2lbs
VC Diameter 2.0″ 2.0″
Displacement .12³ ft .14³ ft
Magnet Weight 15lbs 15lbs
Power Handling RMS/Peak 300/600 300/600
Impedance (Ohm) D2 or D4 D2 or D4
Sd 324cm² 481cm²
Vas 17.1 liters 47.7 liters
Cms 0.12 mm/N 0.12 mm/N
Mms 146.8 g 168 g
Fs 37.4 Hz 32.6 Hz
BL 23 N/A 23.2 N/A
Re 8 ohm 8 ohm
Le 3.88 mH 2.79 mH
Qms 3.15 2.52
Qes 0.52 0.51
Qts 0.45 0.43
Xmax 19 mm 19 mm
Ref SPL @ 1 watt 84.2 dB 86.9 dB
Suggested Sealed .5³ ft .75³ ft
Suggested Ported 1.0³ ft 1.25³ ft
