Description

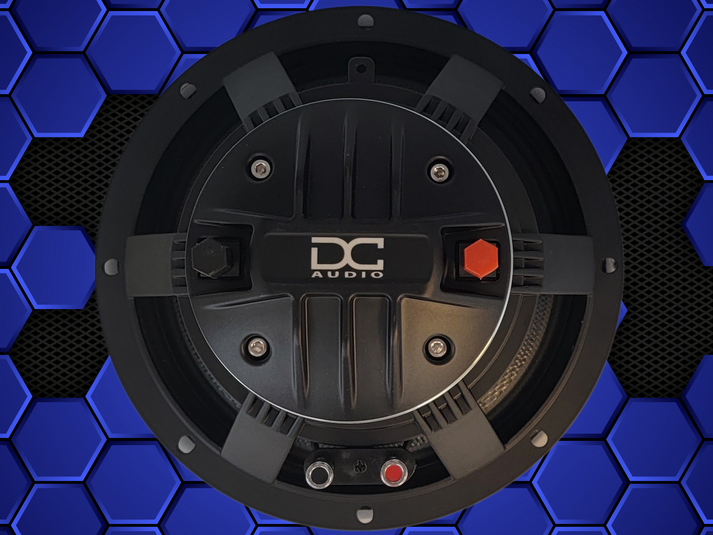

DC Audio NEO COAXIAL CF 8″ Full Range Pro Audio

DC Audio’s New Pro Audio, High-performance Speaker Line.

These New Pro Audio Speakers from DC Audio will wake up the dead, Built to be loud and durable . Use them on boats, Side by sides, or Cars with the biggest of bass systems where regular Speakers just wont keep up

DC Audio 8″ Coaxial Pro Audio Speaker



LF Section:

NEO Motor

Carbon Cone

Power Rating 200 watts rms

2” / 50mm Voice Coil

4 or 8 ohms impedance options

Sensitivity 1w/1m 95db



Mid Speaker T/S:

RE: 5.8 ohms

BL: 11.22

MMS: 17.51

QTS: 0.4378

QMS: 6.9750

QES: 0.4672

CMS: 0.2336

VAS: 16.8023

FS: 78.69

SD: 0.0227



HF Section:

Neo Motor

Titanium Diaphragm

Power Rating 50 watts rms

2” / 50mm Voice Coil

8 Ohms

Sensitivity 1w/1m 110db



Overall Speaker Dimensions:

Cut Out 7.3″

Mounting Depth 4.65″

Frequency Response 80hz-20khz

Cast Frame

Sold in Individuals

** These Speakers are for High Output Applications and 99% of the time require custom installations or modifications to fit the Massive Motor and Frame used for the Pro Audio Line up
