2019+ TRUCKS WILL REQUIRE REMOVAL OF THE UNDER SEAT STORAGE TRAY.

SUB SIZE: 10″ X 2
SUB HOLE SIZE: 9.2″
MOUNTING DEPTH: 6.5″
MAX MAGNET DIAMETER: 7
BAFFLE TO FLOOR CLEARANCE: 1.75″
INTERNAL AIR VOLUME: 2.1 FT3
TUNE FREQ: 35 HZ

THIS BOX WILL NOT FIT THE EXTENDED / DOUBLE CAB TRUCKS
IF YOU HAVE A LARGE HUMP IN THE FLOOR, YOU HAVE A EXTENDED / DOUBLE CAB TRUCK.
CREW CABS HAVE A FLAT FLOOR UNDER THE REAR SEAT.

THIS IS THE ULTIMATE SETUP WHEN YOU WANT HIGH SPL AND DEEP LOW BASS FOR YOUR TRUCK.

THIS ENCLOSURE HAS 1.75″ OF FLOOR CLEARANCE SO YOUR SUBS WON’T BE PRESSED AGAINST THE FLOOR MUFFLING THE BASS.
IT IS PORTED/ VENTED WITH REAR FIRING VENTS THAT REFLECT THE BASS OFF THE REAR WALL EXTENDING THE WAVE LENGTH RESULTING IN A DEEPER BASS RESPONSE AND MORE SPL.
THIS ENCLOSURE IS SPRAY COATED WITH BLACK LINE-X TRUCK BED LINER FOR A HIGH QUALITY, DURABLE, AND EASY TO CLEAN FINISH.

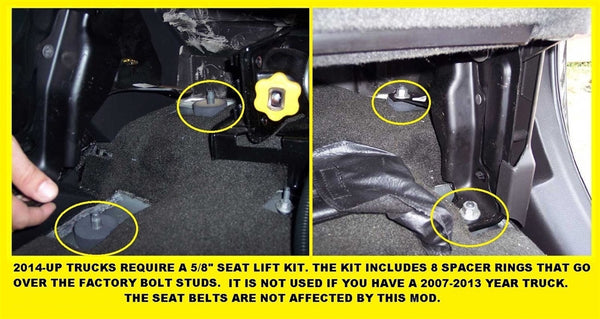

THE 2014-18 TRUCKS REQUIRE A 5/8″ SEAT SPACER KIT TO LIFT THE REAR SEAT 5/8″. THE KIT INCLUDES 8 SPACERS THAT ARE PLACED ON THE BOLT STUDS THAT SECURE THE REAR SEAT. THIS KIT IS INCLUDED WITH THE SUB BOX.
