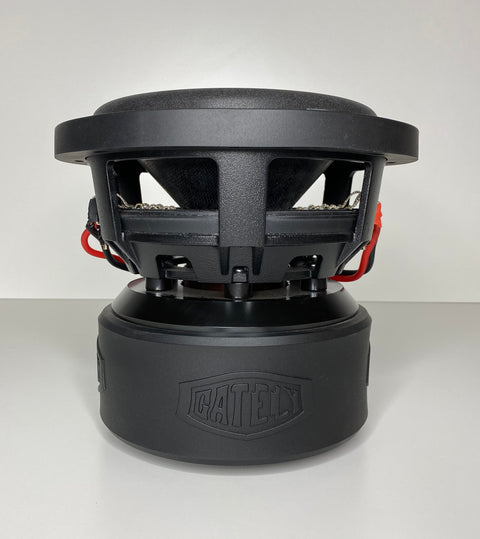

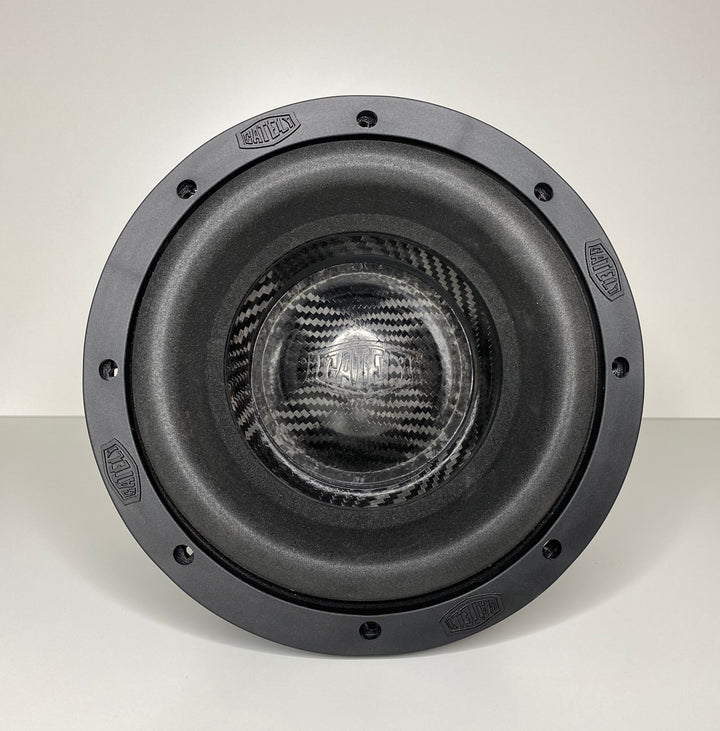

Gately Audio 8″ Alpha v2 Subwoofer

Embossed Gately Audio Carbon Fiber dustcap with paper cone stitched to a high roll surround.

Black powder-coated GATELY engineered basket.

Dual Progressive nomex spiders with stitched flat wound tinsel leads connect to oversized push terminals.

Alpha 6.5” use a 2” 4 layer high temp copper wound while the 8” Alpha subwoofers use a 2.5” voice coil of the same quality.

Alpha 8” have a motor structure that consists of a 2 layer Y35 ferrite magnet that measures 6.14” in diameter by 0.99” thick per slug.

For dimensions, see product specifications in images.

Cutout Diameter 7.24“
Mounting Depth 6.14“
