Description

Reed Mfg DEB4 Deburring Tool for Plastic Pipe – 1-1/4″ to 4″

Reed Mfg DEB4 Deburring Tool for Plastic Pipe – 1-1/4″ to 4″

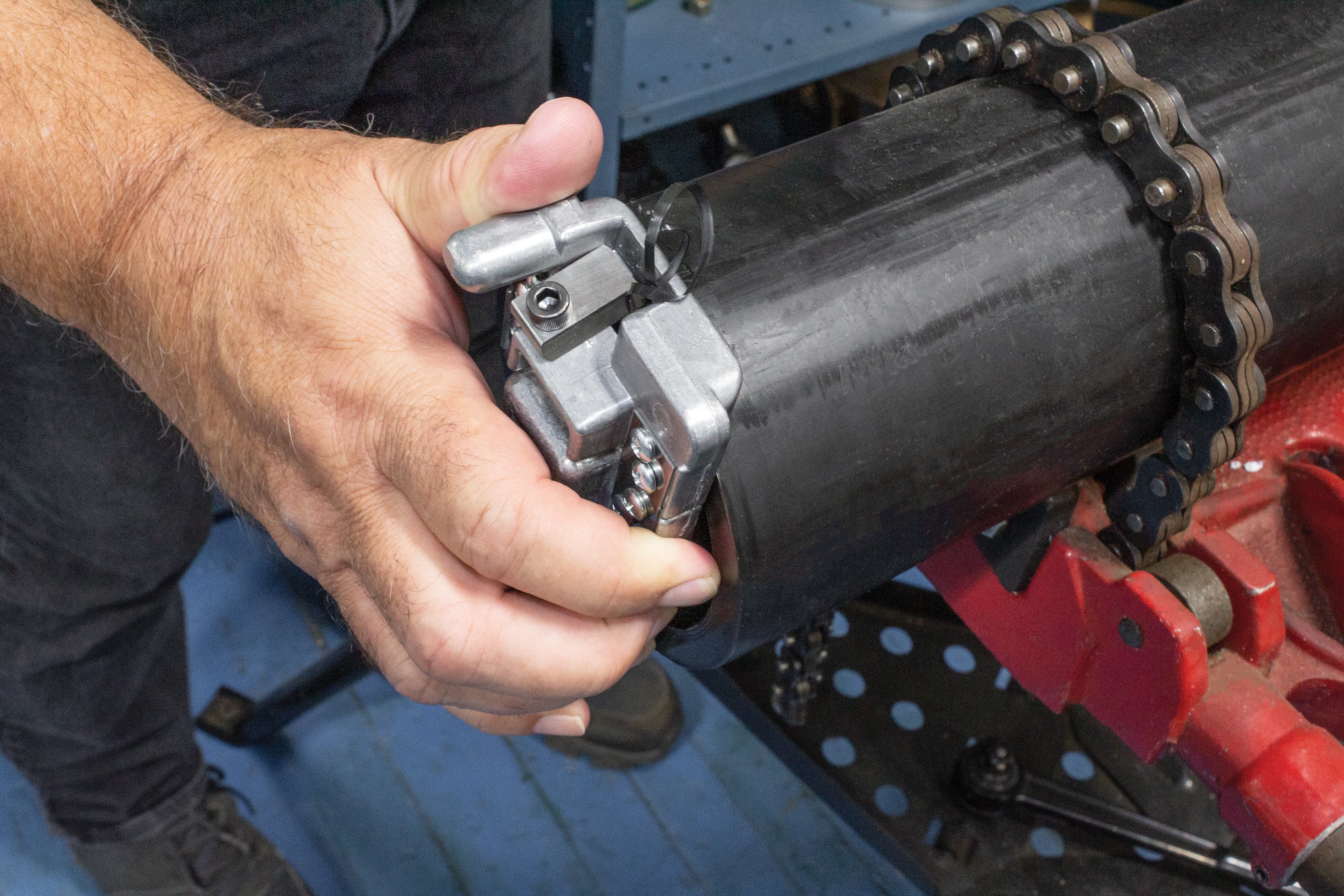

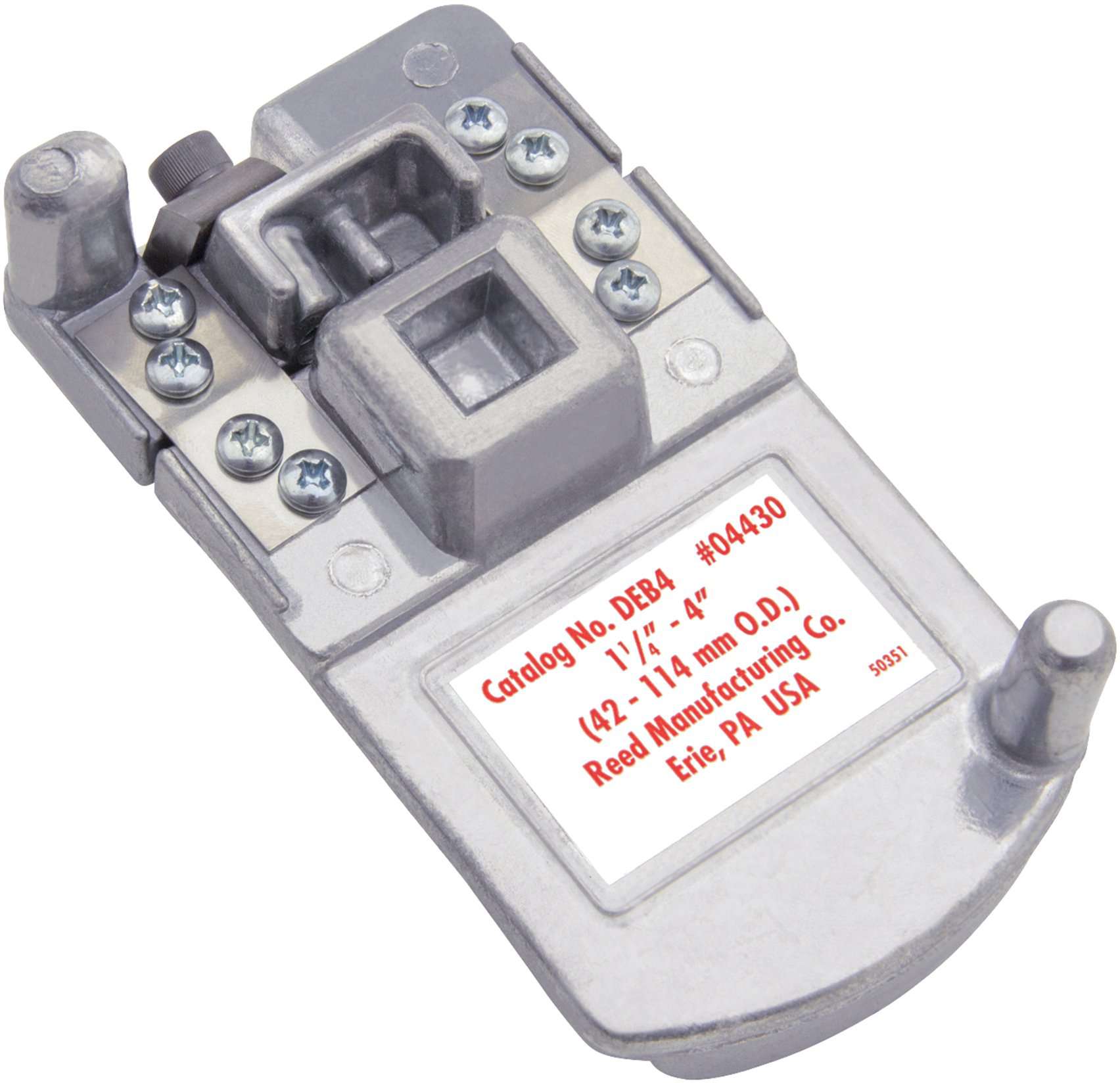

One easy revolution of REED exclusive DEB4 deburrs and produces a 15° external chamfer in seconds. DEB4 deburrs the outside of the pipe only to allow easy assembly into fittings. It fits comfortably in one’s hand for a secure grip. As an alternative to hand turning, there’s a ½” square drive pocket on the backside for use with a ratchet wrench. DEB4 creates a smooth, chamfered pipe end so solvent can be spread evenly for pipe joining. Aluminum die-cast DEB4 deburring tool features a hardened steel blade that is reversible, sharpenable and replaceable. Fits six nominal pipe sizes of PVC, CPVC, ABS and PP up through 4” diameter.

FEATURES

• Suitable for PVC, CPVC, ABS and PP.
• Fits six pipe diameters in one tool.
• Provides external chamfer/bevel on plastic pipe.
• Deburr and chamfer in the same rotation using DEB4.

SPECIFICATIONS

• Pipe Capacity nom.:  1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″ nom.
  42, 50, 63, 75, 90, 114 mm O.D. actual
  3/32″ 15° chamfer

DEB4 Instructions
