Description

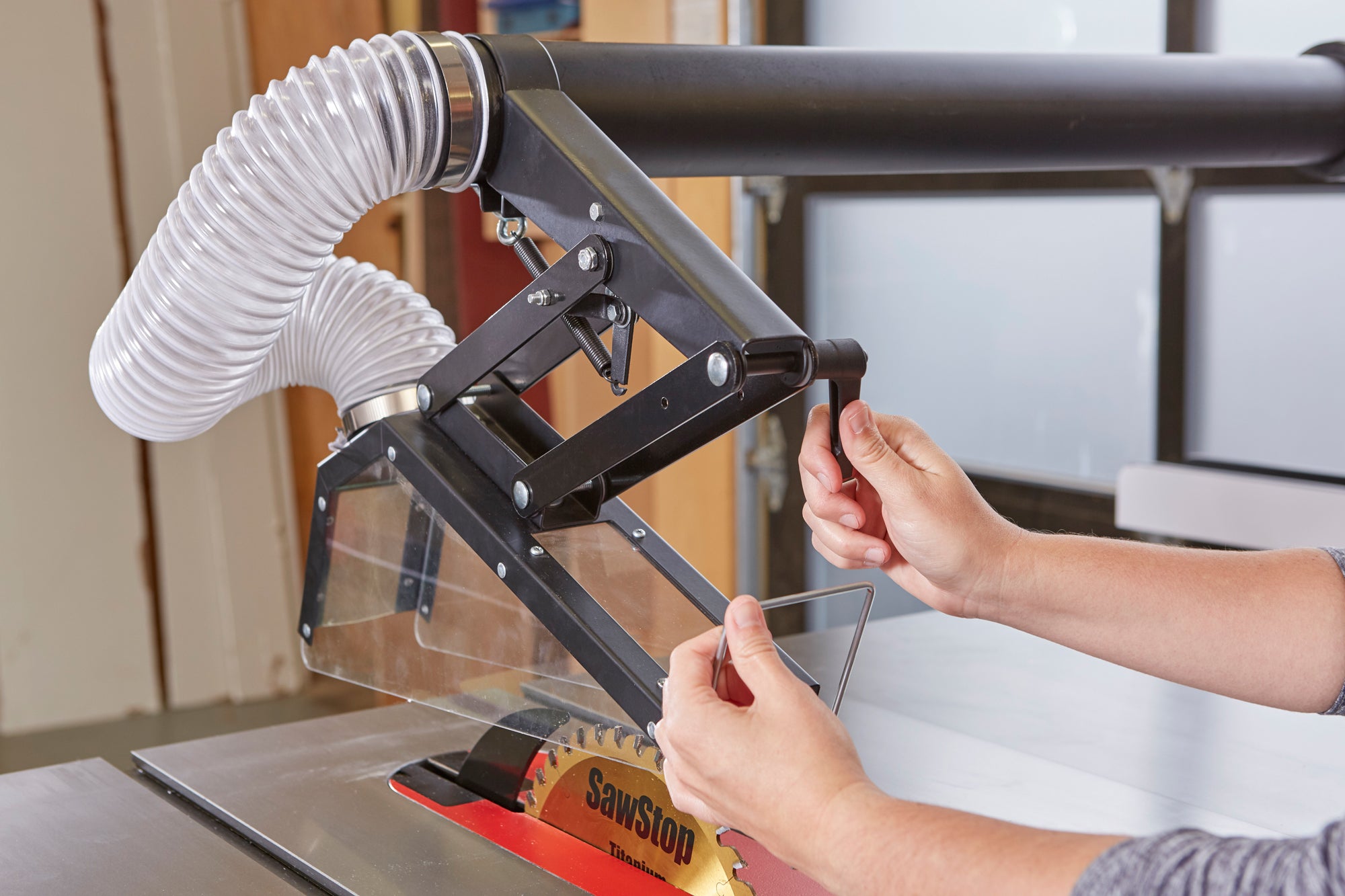

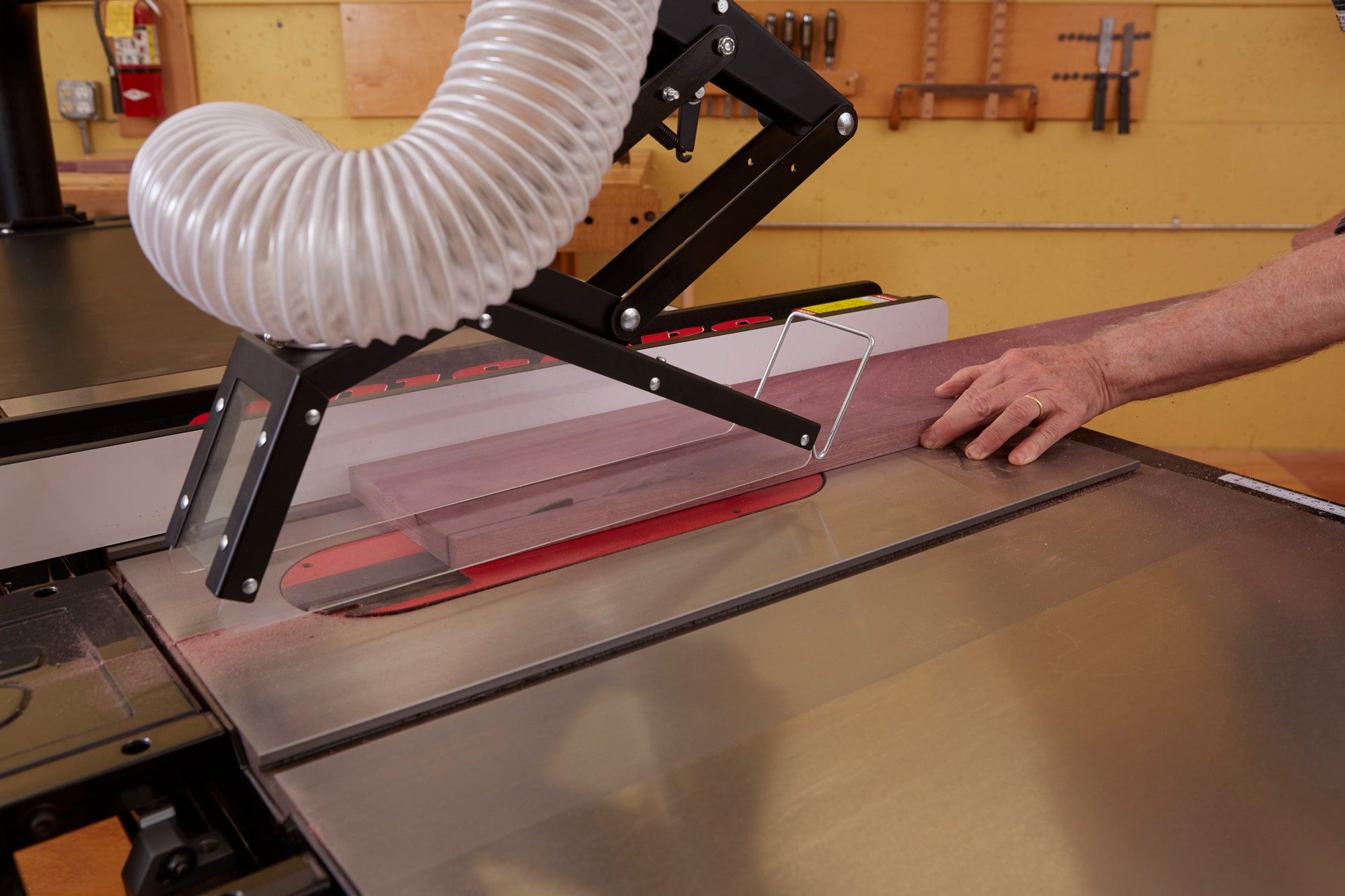

SawStop Floating Overarm Dust Collection Guard

This heavy-duty 4” overarm is designed to provide operator protection while removing table-top dust in both standard and non-through cuts. The transparent blade cover is engineered to lift easily for quick blade access, and the rigid steel overarm swings smoothly away and back into operating position. The wide pipe allows for high air volume collection.

Features

• Outer Dust Tube height above table
  13 1/2”
  Outer Dust Tube height above floor
  33 1/2” to 50”
• Distance between blade and end of extension table
  35 3/4” to 68”
• Inner Dust Tube Diameter: 3”
• Outer Dust Tube Diameter: 4”
• Blade Guard Dimensions
  3 1/2” x 18 1/2”

Compatibility

ICS,PCS,CNS Table Saws
