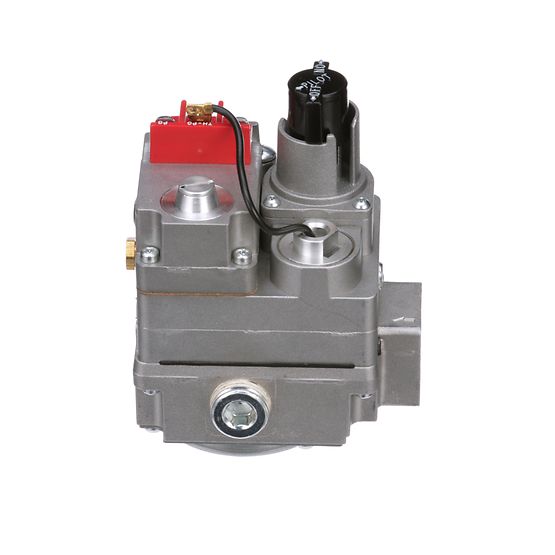

White-Rodgers 36C03U-433 Single Stage, Fast Opening, 3/4″ x 3/4″ Standing Pilot Gas Valve, Natural/LP
White-Rodgers 36C03U-433 Single Stage, Fast Opening, 3/4″ x 3/4″ Standing Pilot Gas Valve, Natural/LP
Universal standing pilot gas valve, 750 mv, straight thru with side outlets (plugged), 3/4″ x 3/4″ npt, two reducer bushings 3/4″ to 1/2″ npt, includes lp conversion kit, eco terminals, can also replace 36C03U-333
Ideal general purpose replacements for Standing Pilot systems.
Straight through design with side taps
Inlet/outlet reducer bushings
Inlet / outlet reducer bushings included on select models
Mounting position upright, or 0° to 90°From upright in any direction.
CSA approved
Data Sheet
Installation Instructions
Specifications
Voltage:
750 mV
Opening Style:
1 – Stage Fast Opening
Pipe Size:
3/4″ x 3/4″
Regulator Setting:
3.5″
Regulator Adjustment Range:
2.5”-5.0”, Nat. Gas
Regulator Adjustment Range:
7.5”-12.0”, LP Gas
LP Conversion Kit Included:
Yes
Reducer Bushing Kit:
Yes
Flow Direction:
Straight Through
Side Taps:
Yes
Inlet/Outlet Pressure Tap:
Yes/Yes
Standing Pilot with Line Interrupter:
Yes
HSI/DSI:
No
Intermittent/Proven Pilot:
No
Replaces the following models:
Manufacturer
Part #
Comments
Robertshaw:
700-506
36C03U-400 is also available, 36C03U-400 has no LP kit or bushings
Robertshaw:
700-511
Replacement valid for vented applications only
Robertshaw:
700-512
Replacement valid for vented applications only
Robertshaw:
700-515
Requires use of LP kit (included), replacement valid for vented applications only
